CNLINKO YM-20 Industrial Waterproof Connector IP67 Circular Connector Military Design Aviation Connector PBT Plastic Shell Connector M20 2-12 Pin Flange Socket

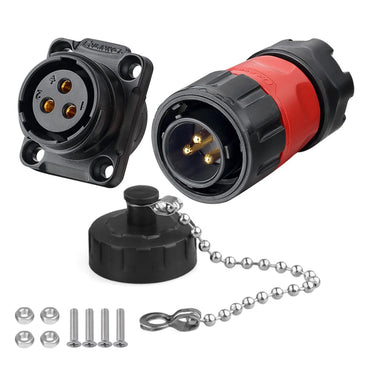

YM-20-C03PE-02-001+YM-20-J03SX-02-401 ; Male Plug + Female Socket ; Connecting Mode: Plug/Unplug ; Protection Level: IP67 (Mated) ;
【Standard】 Cable Specification: 2,5-4,0 mm²/14-12 AWG ; Cable Diameter Range: Ф9,0~Ф12,0 mm ; Contact Diameter × Number: Φ2,7×3 ; Durability: ≥500 Mating/Unmating Cycle ; Temperature Rating: -40 ℃ ~ 80 ℃ ; Assembly Method: Welding ;

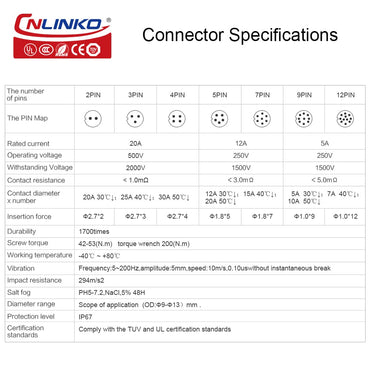

【Specification】 Rated Current : 20 A ; Operating Voltage (AC.V.rms) : 500 V ; Withstanding Voltage (AC.V), 1 Minute : 2000 V ; Contact Resistance : 500 MΩ ; Prohibited To Charged Inserted ;

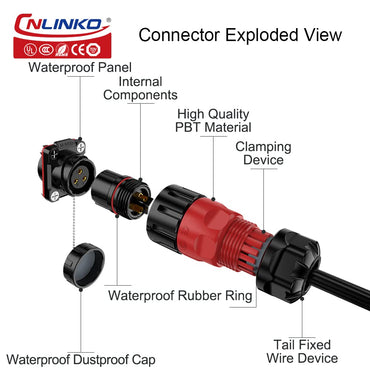

【Material】 Shell & Insulated Parts: High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Gold Plated) ; Sealing: Silica Gel ;
【Application】 Medical Equipment ; Server ; Electric Power Equipment ; Solar Energy Equipment ; The Smart Grid ; Communications Equipment ; Vehicle Equipment ; Ship Equipment ; Stage Equipment ; Heavy Machin ;
